PREPARE TO BE BLOWN AWAY!

With 460.8 Kbps!

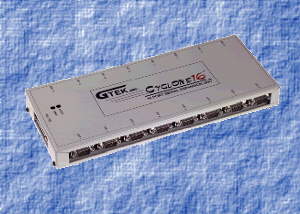

Cyclone 16 image Cyclone 16/32
Press Releases
Technical Stuff
Compatibility
Order On-Line

Product Description

The release of GTEK's 16-port serial board - Cyclone16 is here! This next generation, Intelligent UART serial board is an exciting addition to our already outstanding line of serial boards. This impressive piece of engineering will take the industry by storm!

Incredible speed with second generation 16C654 UARTS! Large transmit/receive FIFOS and automatic handshaking do all the work with resultant data rates to a remarkable 460.8 Kbps! The larger FIFOS ensure data integrity across high speed lines. Perfect for ISDN!

Setup is a breeze! The Cyclone16 is packed with powerful features including 8 addressing modes and 9 IRQ selections - perfect for operating systems that support shared IRQ's, like Windows NT and Windows 95. Linux, BSDI, DOS, and OS/2 are also supported.

Priced competitively - You'll see that the Cyclone Serial Expansion Units are unlike any other multiport board on the market today. These new products are the solution to Internet and Intranet Connectivity! Check the competition - no one beats GTEK!

Cyclone16/32 Features:

  • 16C654 Intelligent UARTS! The best on the market today!
  • Built-in -12 VDC power supply reduces load on host computer.
  • Incredible data throughput! Up to 460.8 Kbps on all ports! 64 byte transmit/receive FIFO's and automatic handshaking - means less overhead on your system.
  • Upgrade from 16 to 32 ports. Only one interface board is required!
  • Flexible addressing modes available. There are 8 addressing modes (6 vertical and two horizontal modes) to choose from. We've enabled vertical addressing modes to allow you to tap unused I/O space. This greatly minimizes hardware conflicts.
  • 9 IRQ selections to choose from.
  • Operating systems supported: WindowsNT, Windows95, Linux, FreeBSD, BSDI, OS/2 (use SIO) and DOS. PCI version uses NT4 only.
  • Compatible with all popular BBS/Internet software: PCBoard, MajorBBS, Worldgroup, , Metaworlds, Esoft, Durand Mindwire, Wildcat, and much more!

previous top next

Technical Specifications

Cyclone16/32 Serial Expansion Unit

I/O Card

Dimensions 3" x 6"
Bus Type ISA or PCI Available
Card Slot ISA 16-bit, PCI 32-bit
Card Style -size
Connectors ISA Edge Connector; DB-25 female
Environmental Operating Temperature: 0-70 degrees Celsius
Operating Humidity: 0-95% relative humidity (non-condensing)
Electrical +5V @ 250mA/+12V @ 500mA (Cyclone-16) or 1A (Cyclone-32)-12V (none)
Protective Devices Raychem Polyfuses (auto-reset) protect against damage from connection of improper devices to I/O card.
I/O Addressing Modes 8; 2 horizontal and 6 vertical modes
IRQ 's Supported 9; IRQ 's 2,3,5,7,10,11,12,15

Expansion Unit

Dimensions 5" x 12.25" x 1.3" (32 port add-on makes the height 2.63"
Enclosure 6061-T6 Aluminum
Paint Powder Coat, color "White Knight"
Labeling Epoxy, Silk Screen Process, two color (Black with Red spot color)
Connectors DB-25 (1 ea.), DE-9 (16 per expansion unit)
Indicators Red LED's, Power and Activity
Electrical +12V, -12V, +5V supplied by I/O card.
Environmental 0-70 degrees Celsius 0-95% relative humidity (non-condensing)
Interconnection Cable 6 foot DB25M to DB-25F
Data Cables C16M 16-6 foot DE-9 to DB-25 (standard) other lengths available.
Interface Standard EIA-232 (RS-232C)
Number of I/O Ports 16 (Cyclone 16) or 32 (Cyclone 32)
Data Format Asynchronous, start + data + stop bits.
Data Rates 110 bps to 460.8 Kbps
I/O Connector Configuration DTE (Data Terminal Equipment)
Processor Type Intelligent UART - proprietary to component mfgr.
UART Part Number 16C654
FIFO Depth 64 bytes transmit, 64 bytes receive
Handshake Driven by PC's processor or Auto-Handshake by UART.
