The "Smart" Choice!

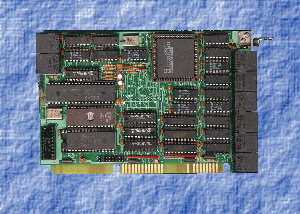

SmartCard-8 Image SmartCard-8
Press Releases
Technical Stuff
Compatibility
Order On-Line

Product Description

The SmartCard-8 intelligent communications co-processor provides a step in performance beyond ordinary communications boards. The SmartCard-8 has an on-board "FOSSIL" driver which recognizes all types of FOSSIL based software. The SmartCard-8's buffers are 200 times greater that those of a 16C550 UART's FIFO making it perfect for multi-tasking operating systems!

Included on the SmartCard-8 is the revolutionary BBS Guardian Watchdog Circuit which constantly monitors the status of the BBS system. In the event of a "lock-up", the Guardian Performs a hardware reset on the computer. This feature keeps "down-time" to a minimum.

SmartCard-8 Features

  • Eight high speed communications channels.
  • Built in "FOSSIL" driver and buffers - results in 43KB more space for each BBS node. Compatible with all software that support "FOSSIL" command set.
  • Guardian Watchdog circuit protects system integrity. .
  • Handles data without host CPU interrupts.
  • 10 Conductor FULL modem handshaking support.
  • Data rates up to 115,200 BPS.
  • FCC Part 15 compliant.

previous top next

Technical Specifications

SmartCard-8 Intelligent Multiport Serial Board

Dimensions 4.25" x 6.5"
Bus Type ISA
Card Slot 16-bit
Card Style ½ -size
Programmable Memory 2764 to 27256 EPROM (200ns) jumper selectable
I/O Addressing Modes jumper selectable: 2E0h, 2E4h, 210h, 214h, 218h, 21Ch, 220h
IRQ 's Supported 2, 3, 5, 10, 12
Connectors RJ-45
Data Cables B8TM Telekit: 6 foot RJ45 to DB-25M (standard)
Interface Standard Standard: EIA-232 (RS-232C)
Optional: RS-422 or RS-485
Number of I/O Ports 8
Data Format Asynchronous, start + data + stop bits.
Data Rates 110 bps to 115,200 bps (software selectable)
I/O Connector Configuration DTE (Data Terminal Equipment)
Processor Type Dallas DS80C320 at 24MHz

Environmental Operating Temperature: 0-70° degrees Celsius
Operating Humidity: 0-95% relative humidity (non-condensing)
Power Requirements Powered through ISA bus: 5 VDC, 12 VDC, -12 VDC @ 5 Watts
Modem Compatibility Compatible with all RS-232 type modems including ISDN
